SCAFFOLDING AND FORMWORK ACCESSORIES

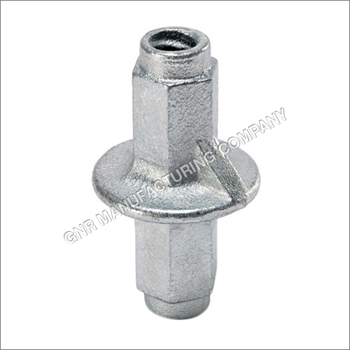

Water Stopper
Product Code: GNR 112

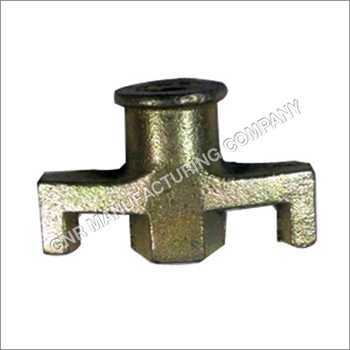

Wing Nut
Product Code: GNR 113

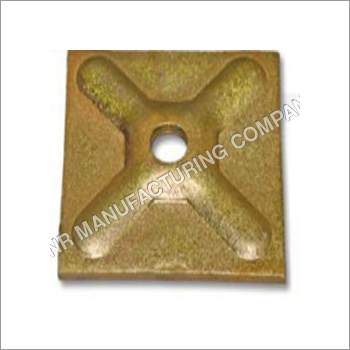

Waller Plate
Product Code: GNR 114

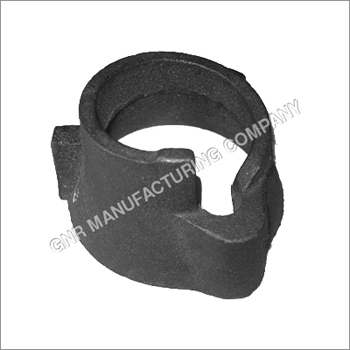

Bi-Hexagonal Ring Spanners Deep OffseTop Cup
Product Code: GNR 115

Bottom Cup
Product Code: GNR 116

Jack Nut
Product Code: GNR 117

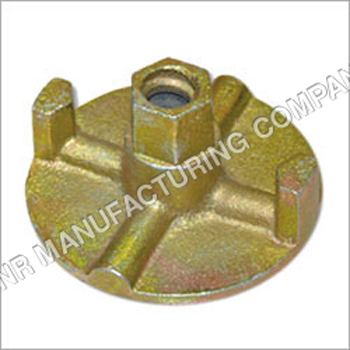

Anchor Nut
Product Code: GNR 118

Prop Nut
Product Code: GNR 119

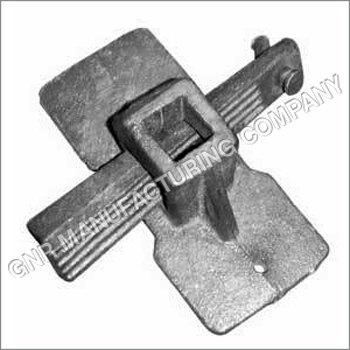

Rapid Clamp
Product Code: GNR 120

Prop Sleeve
Product Code: GNR 121

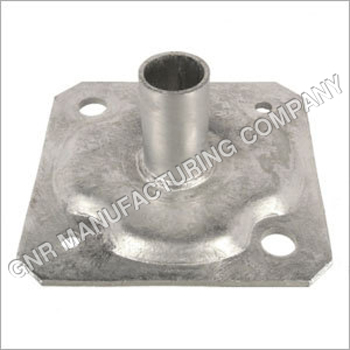

Base Plate for Jack
Product Code: GNR 123

Adjustable Jack
Product Code: GNR 124

Universal Jack
Product Code: GNR 125

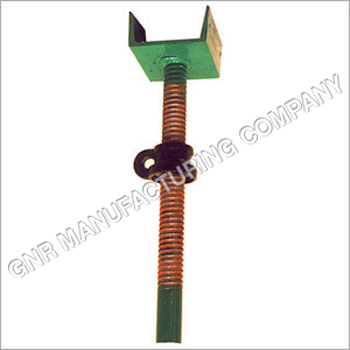

Adjustable U - Head (Pipe OD 38mm)
Product Code: GNR 126

Shuttering Clamp
Product Code: GNR 127

Ledger Blade
Product Code: GNR 128

Tie Rod
Product Code: GNR 129

3 Leg Anchor Nut
Product Code: GNR 130

Material:Malleable Cast Iron / SG Iron
Size:116mm Length
Size:0.500 KG

Material:Malleable Cast Iron / SG Iron
Size:0.320 KG

Material:ST 37
Size:120 x 120 x 6/10mm
Size:0.660 / 1.10 KG

Material:Malleable Cast Iron / SG Iron
Size:0.400 / 0.450 KG

Material:Malleable Cast Iron / SG Iron
Size: 70 /100mm
Size:0.400/0.590 KG

Material:High Quality Steel(Casted Body & Forged Wedge)
Size: 4-10 mm / 7- 12 mm
Size:0.380 / 0.490 KG

Size
150 X 150 X 6 MMPipe : 48.3mm, H-100mm
150 X 150 X 2.5 MMStrip : W-25mm, H-50mm, T-4mm
150 X 150 X 2.5 MMPipe : 22.7mm, H-50mm

ADJUSTABLE BASE JACK (Pipe OD 38 mm)
Tl/Al (Mtr)Wt.(Kg)
0.450/0.3502.06
0.550/0.4502.95
0.650/0.5503.30
0.750/0.6503.70

ADJUSTABLE BASE JACK (Pipe OD 34 mm)
Tl/Al (Mtr)Wt.(Kg)
0.450/0.3502.45
0.550/0.4502.75
0.650/0.5503.10
0.750/0.6503.40

Base Size 150 x 150 x 6 (mm) Tl-Total Length Al-Adjustable Length

UNIVERSAL JACK (Pipe OD 38mm)
Tl/Al (Mtr)Wt.(Kg)
0.450/0.3501.60
0.550/0.4501.95
0.650/0.5502.30
0.750/0.6502.70

UNIVERSAL JACK (Pipe OD 34mm)
Tl/Al (Mtr)Wt.(Kg)
0.450/0.3501.45
0.550/0.4501.75
0.650/0.5502.10
0.750/0.6502.40

ADJUSTABLE U - HEAD (Pipe OD 38mm)
SizeWt.(Kg)
1004.70
1505.75
2006.80

ASize (L)
13540 x 60 cm
13560 x 80 cm
13580 x 100 cm
135100 x 120 cm

Material:EN - 8
Size: 15 mm, upto 6mtr. Length
Weight:1.47 KG/Mtr.

Material:Malleable Cast Iron / SG Iron
Size:100mm
Weight:0.350 kg
