MIGI Three Way Elbow

Product Code: GNR 185

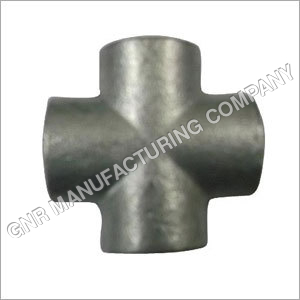

MIGI Cross

Product Code: GNR 189

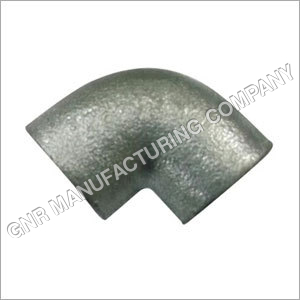

MIGI Elbow

Product Code: GNR 190

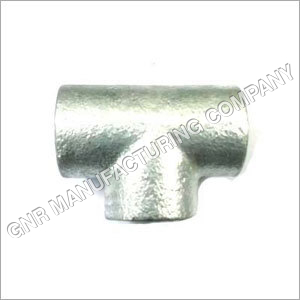

MIGI Tee

Product Code: GNR 191

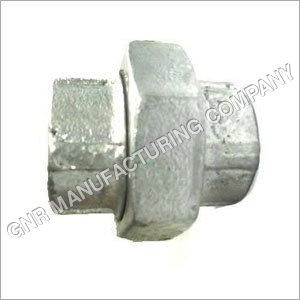

MIGI Union

Product Code: GNR 192

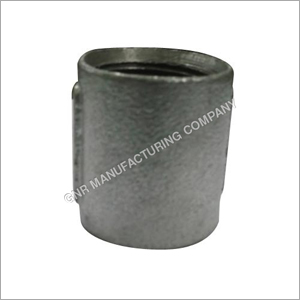

MIGI Socket

Product Code: GNR 193

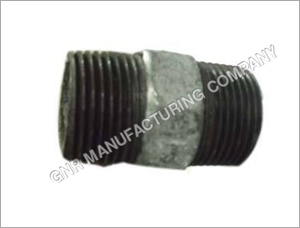

MIGI Hex Nipple

Product Code: GNR 194

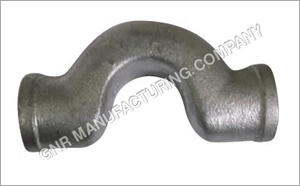

MIGI Pipe Over

Product Code: GNR 195

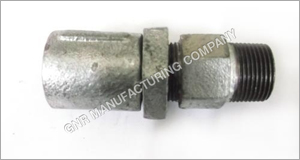

MIGI Long Screw

Product Code: GNR 196

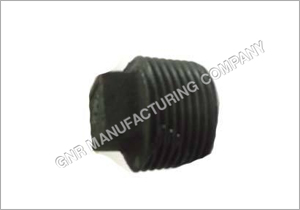

MIGI Plug

Product Code: GNR 197

Nominal Size in mm	A in mm	D in mm
15	34	30
20	38	36
25	43	42
32	45	50
40	52	57
50	60	71

Nominal Size in mm	A in mm	D in mm
15	64	30
20	67	35
25	77	41
32	90	51
40	102	58

Nominal Size in mm	A in mm	D in mm
15	34	30
20	39	36
25	43	41
32	46	50
40	52	58
50	60	71
65	70	88
80	79	100
100	98	126
150	134	180

Nominal Size in mm	A in mm	D in mm
15	64	30
20	70	36
25	79	41
32	93	51
40	100	58
50	117	71
65	140	88
80	157	100
100	195	126
150	264	180

Nominal Size in mm	A in mm	B in mm	A in mm
15	53	46	30
20	58	55	36
25	68	64	41
32	73	75	50
40	74	84	58
50	79	95	71
65	89	113	87
80	99	131	100
100	110	153	127
150	146	223	182

Nominal Size in mm	A in mm	D in mm
15	37	30
20	43	36
25	47	41
32	51	50
40	58	58
50	67	71
65	76	87
80	80	100
100	95	126
150	112	180

Nominal Size in mm	A in mm	D in mm
15	49	27
20	54	30
25	61	38
32	66	47
40	71	54
50	81	67
65	90	84
80	99	96
100	120	123
150	152	193

Nominal Size in mm	A in mm	D in mm
15	24	13
20	27	15
25	31	19
32	35	24
40	37	27
50	45	33
65	45	34
80	45	38
100	51	46
